High-Pressure Sprinkler Cap Redesign

Project Overview

Redesigned a high-pressure sprinkler cap to eliminate leaks using fluid-aware CAD and 3D print optimization. Final version withstood outdoor use and full water pressure without sealant.

Skills Used

3D CAD Thread Design & Tolerancing Mechanical Stress Modeling Fluid Dynamics

PressureFit: Leakproof Sprinkler Cap

Overview

This project involved designing a pressure-resistant, leakproof replacement cap for a smart sprinkler head using FDM 3D printing. The cap needed to handle high water pressure, variable outdoor conditions, and material limitations inherent to consumer-grade additive manufacturing.

Problem

  • Layer Line Weakness Under Pressure
    Early prints failed catastrophically along layer lines when exposed to pressurized water, especially where vertical splits formed along stress paths.

  • Water Sealing Challenges
    3D-printed surfaces lack the smoothness and tight tolerances of injection molding, creating persistent leakage issues when threaded or pressed into place.

  • Outdoor Durability
    Initial prototypes made in PLA warped or cracked under sun exposure and repeated use.

Technical Approach

1. Diagnosing Layer Failure

After observing vertical splits during pressure testing (see Test 1 below), I researched mechanical failure modes in FDM prints. The brittle fracture followed classic anisotropic stress propagation along Z-layer interfaces. I experimented with several solutions:

  • Angled Print Orientations
    Rotated the cap on the build plate to redirect stress diagonally across layer lines.

  • Support-Driven Redesigns
    Introduced internal slants and interlocking geometry to distribute pressure more evenly across multiple print axes.

  • Stress-Relief Geometry
    Added ribs and reinforced flanges to reduce flexing at stress concentrations.

2. Achieving Water-Tight Sealing

To address leakage:

  • Compartmentalized Pressure Zones
    Redesigned internal flow paths to localize water pressure away from seam-critical areas.

  • Chamfers & Compression Zones
    Added tapering and flexible crush-fit sections to simulate a gasket-like seal.

  • Thread Engagement Tuning
    Optimized thread depth and spacing to reduce the chance of bypass at threaded interfaces.

3. Material & Environmental Optimization

  • Switched to PETG, chosen for its UV resistance, toughness, and reduced brittleness under pressure.
  • All designs were validated under real garden hose pressure and multiple thermal cycles.

Prototype Archive

images/Development.jpg

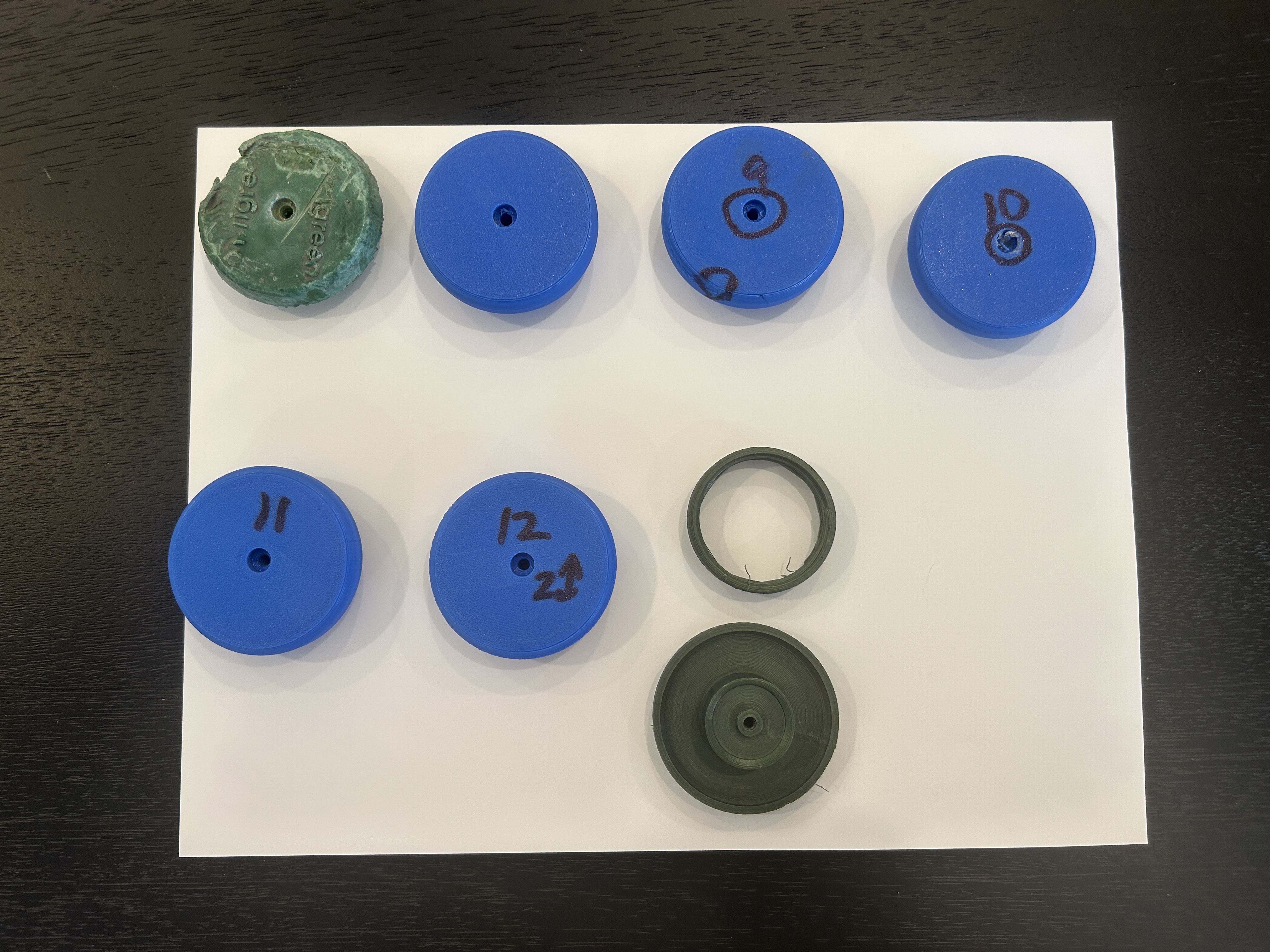

Ten iterations explored seal geometry, thread engagement, material choice, and print orientation. Each change was tested for pressure integrity and outdoor durability.

Internal Compartmentalization

images/Change1.jpg

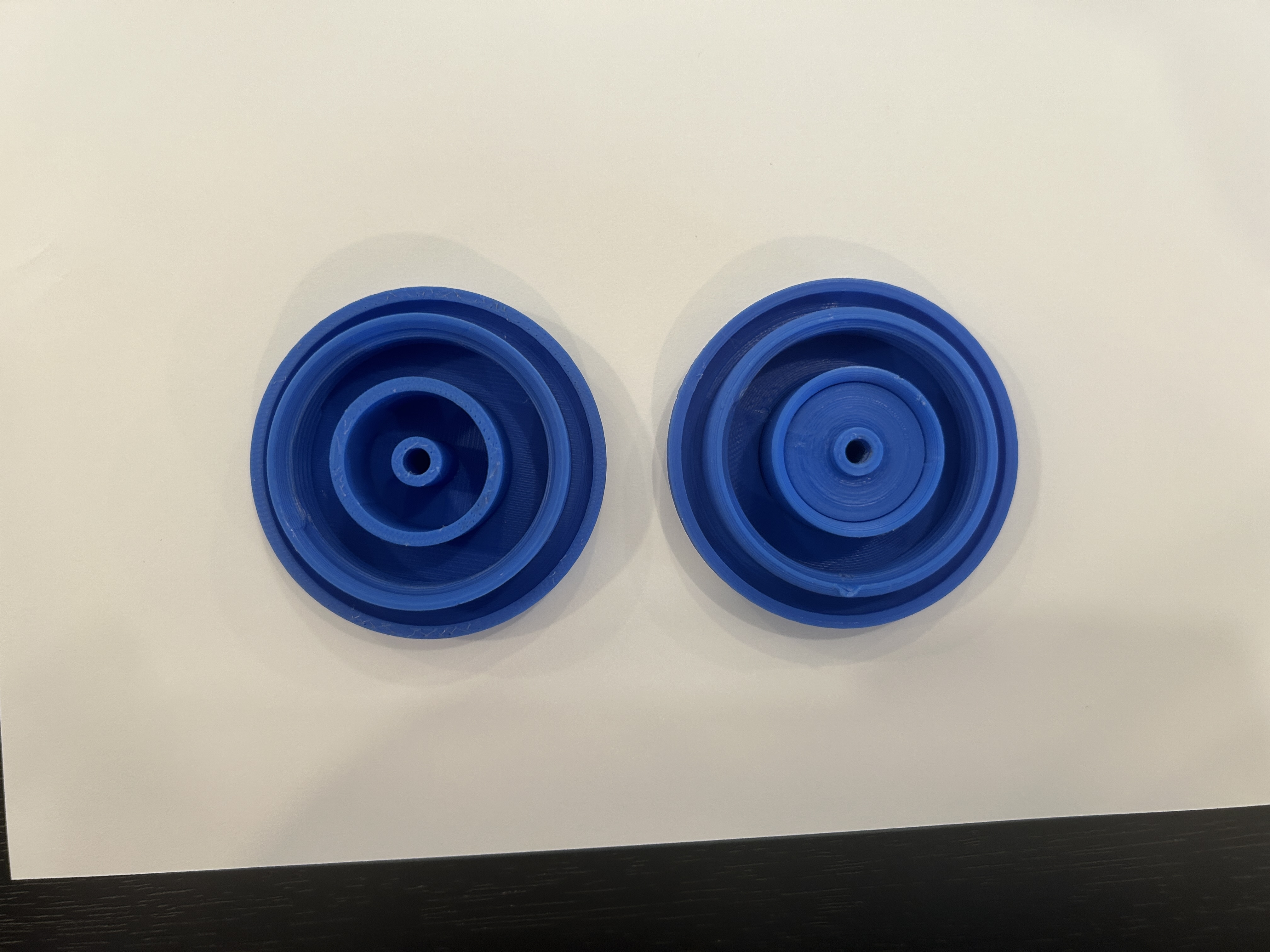

This redesign added pressure-isolated chambers and sealing flanges. It was a key step in eliminating leak paths around the thread root.

Failure Analysis

images/Test1.jpg

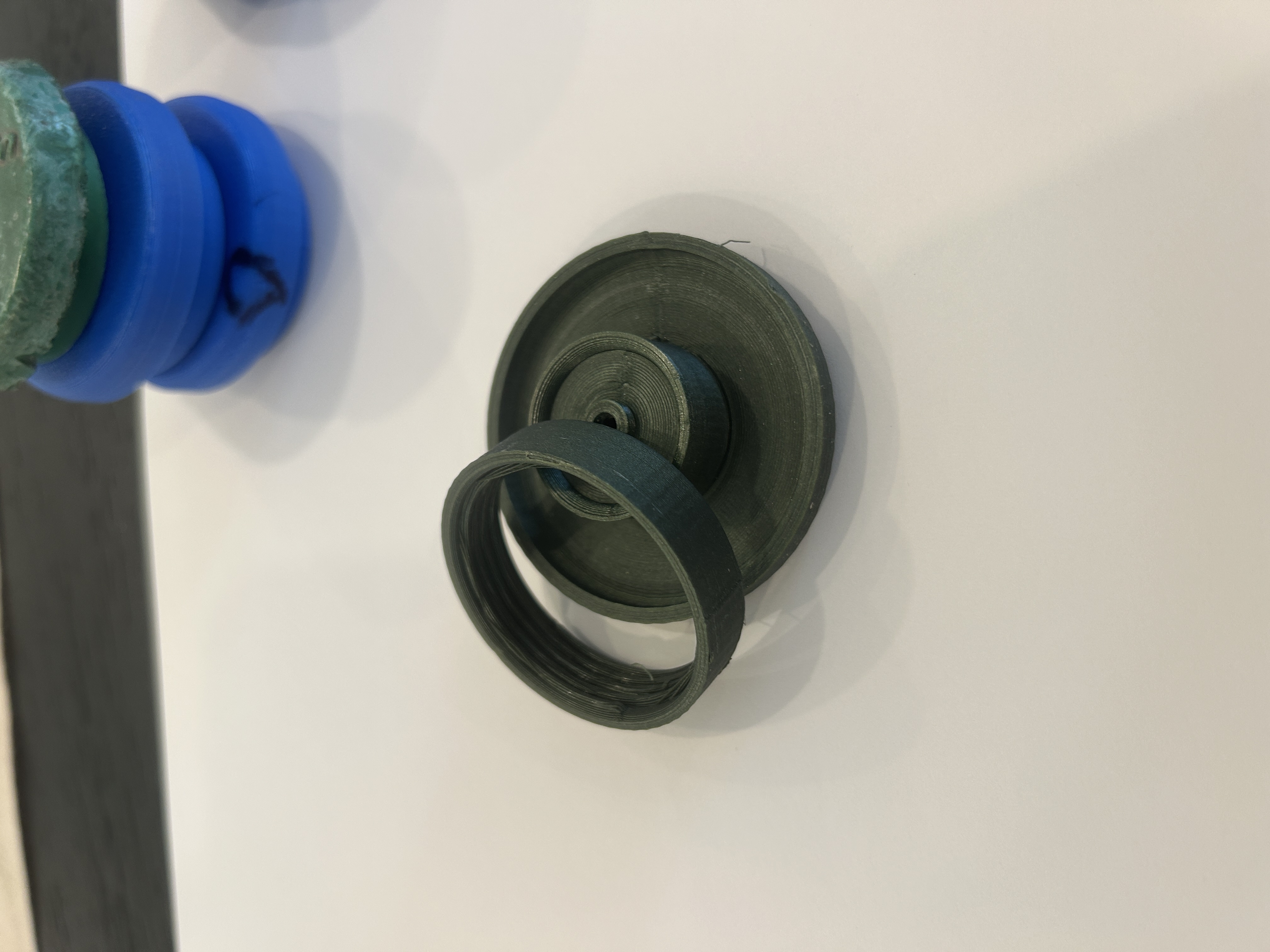

This test revealed vertical failure along layer lines under pressure. It led to angled printing strategies, interlocking geometry, and reinforced sealing zones.

Key Outcomes

  • Researched Print Mechanics to Solve Real-World Failure
    Diagnosed and addressed layer-oriented splitting using FDM-specific design strategies.

  • Engineered a Leakproof Fit Without Gaskets
    Tuned part geometry to take advantage of crush-fit and compression sealing without elastomeric materials.

  • Designed for Harsh Outdoor Conditions
    Final cap withstood sun, hose pressure, and repeated use without deformation or leakage.
