SyringeGrip+

Project Overview

Redesigned SyringeGrip to accommodate variations in hand size and syringe diameter tolerances. Design was tested and approved by medical clinic

Skills Used

3D CAD Structural Analysis Design for Manufacturability

Project Details

What is a SyringeGrip?

The SyringeGrip was developed to address usability challenges in controlled dispensing scenarios, especially where precision and repeatability are critical. The core goal was to create a stable yet adaptive interface for standard BD syringes.

Problem

  • Inconsistent Fit Across Users
    Users with different finger sizes struggled with the one-size-fits-all grip, leading to discomfort and reduced control.

  • Manufacturing Variance in Syringes
    BD syringes manufactured in different regions showed slight variations in outer diameter. The original design compensated with a looser fit, sacrificing stability.

Origina SyringeGripl

images/project1.png

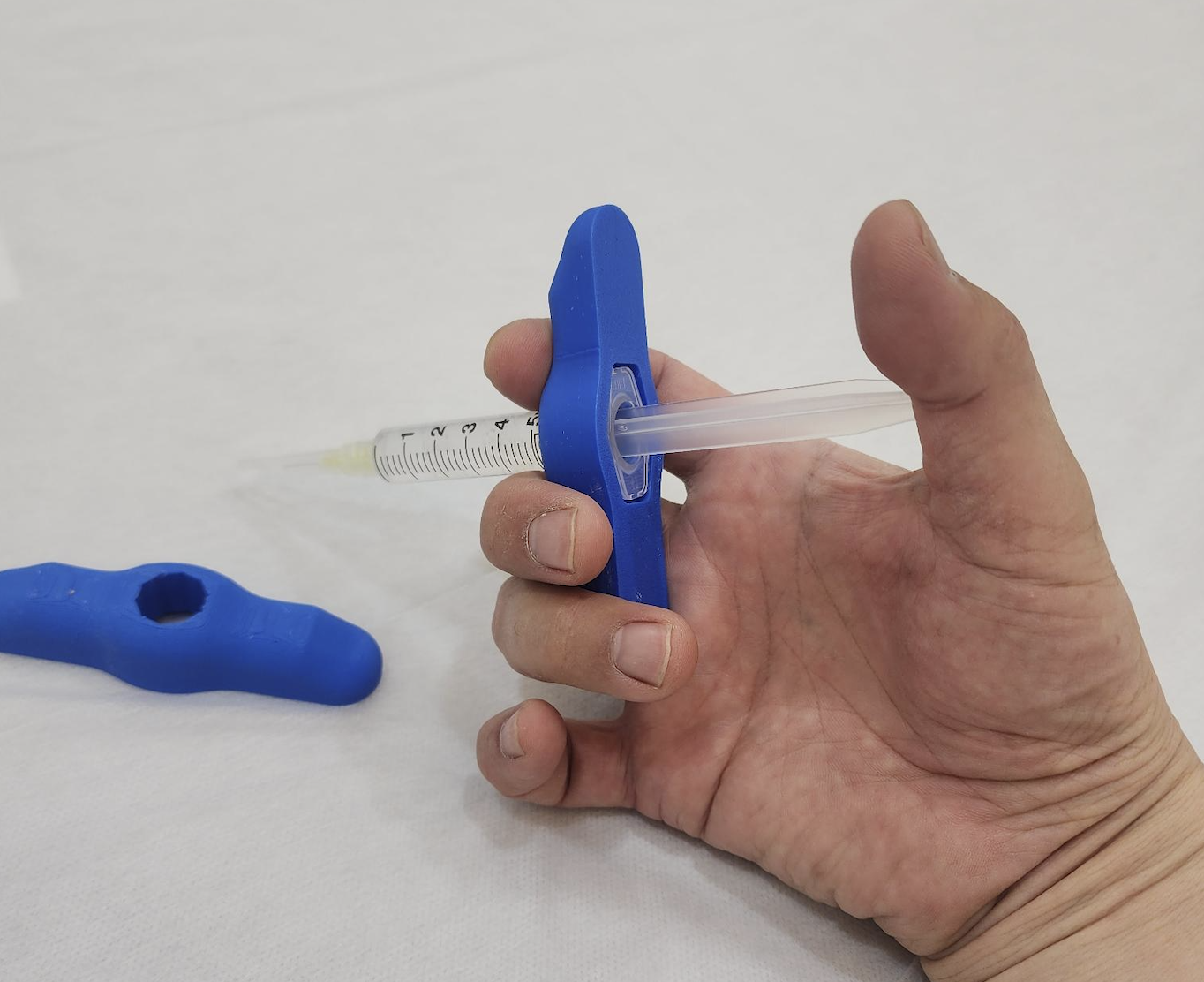

SyringeGrip+

images/project4.png

Key Improvements

  • Clinically Informed Design
    Collaborated with a medical professional to gather user feedback and tune ergonomic refinements.

  • Spec-Driven Fit Optimization
    Studied manufacturer specifications (BD, Terumo, Glatopa) to design around real-world tolerances.

  • Adaptive Geometry
    Introduced crush ribs and improved contouring to maintain a self-aligning fit without compromising universal compatibility.

images/project1.png

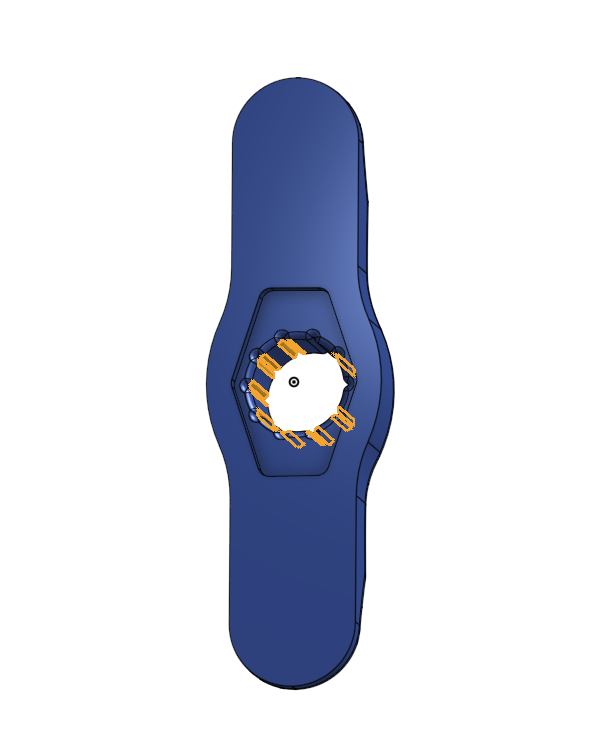

[Crush Ribs highlighted in orange]
